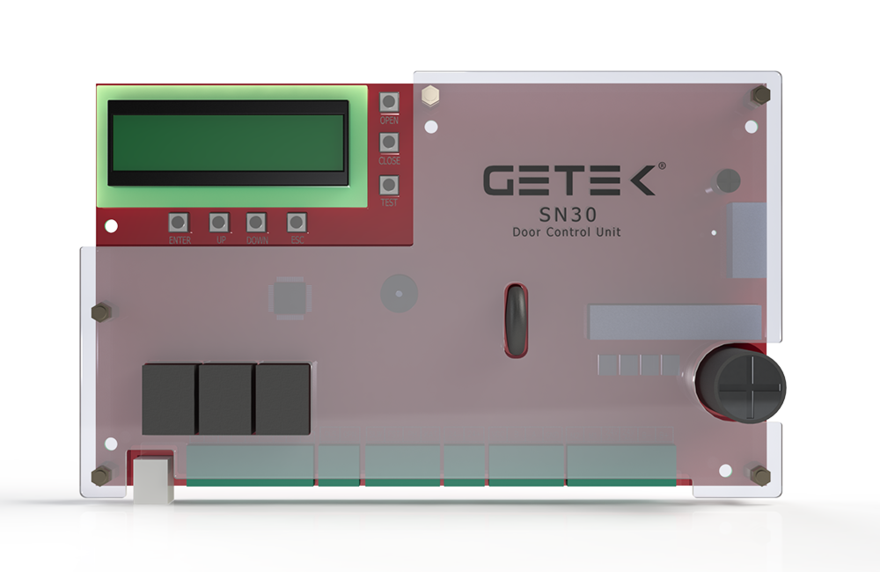

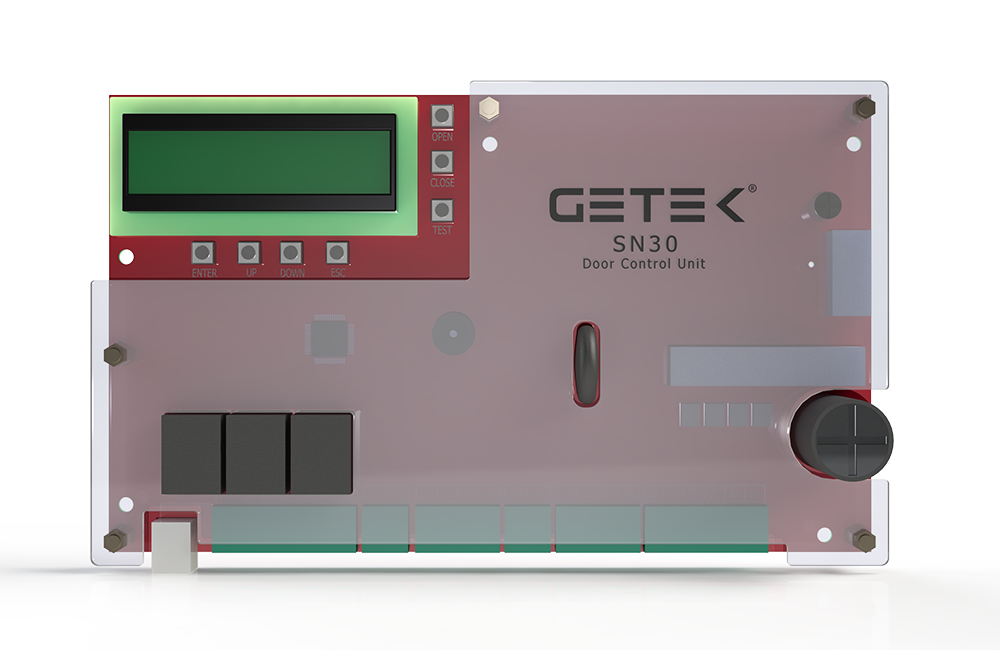

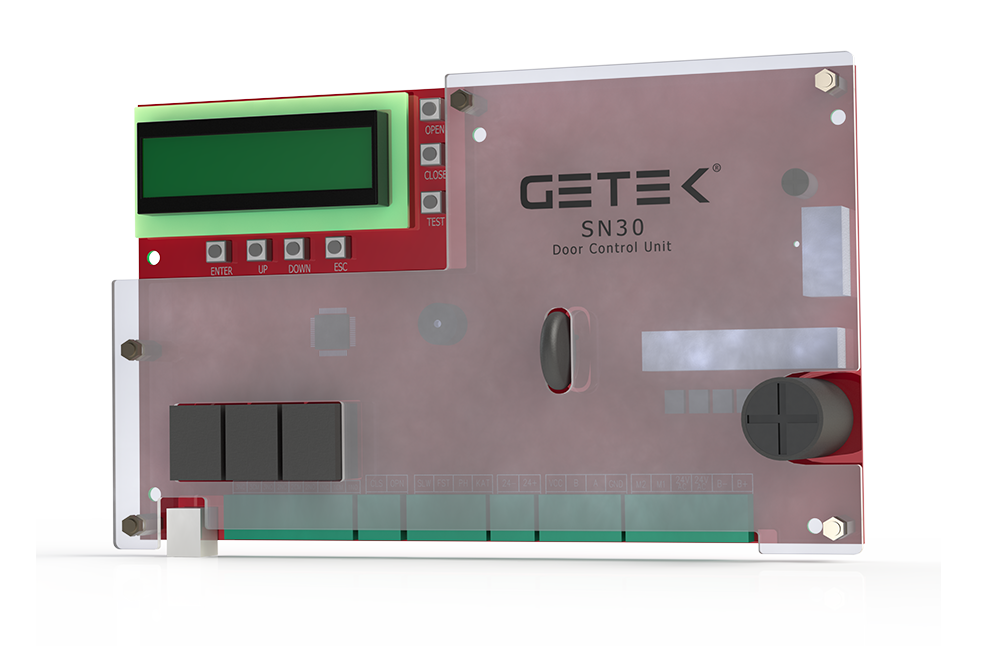

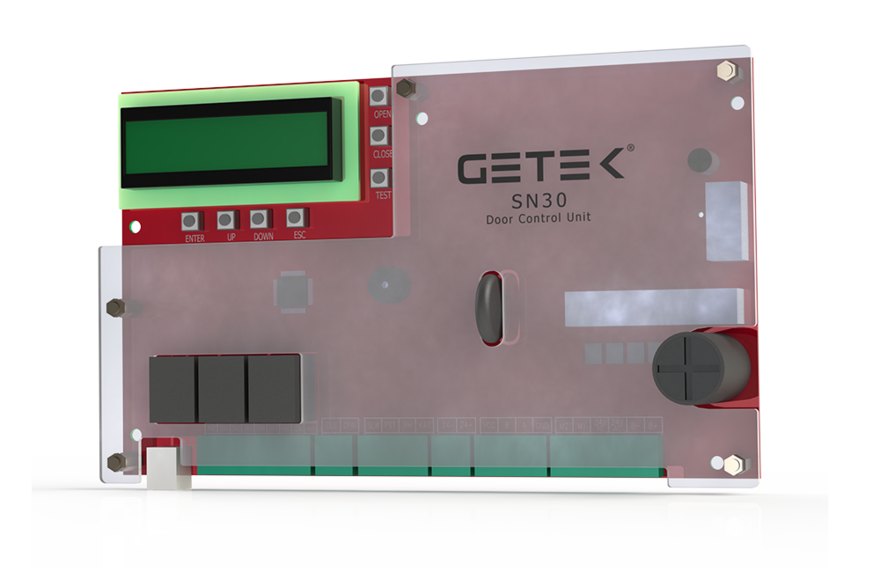

SN30 is specifically designed for elevator automatic doors. Thanks to its advanced algorithm, it provides a high level of comfort on various types of doors.

  • SN30 is designed for 24V - 100W DC geared motors.
  • The SN30 door controller can be used for doors weighing up to 200kg.
  • It has the capability to easily adapt to different measurements, motors, and systems through its Door Recognition feature.
  • Parameters such as motor reduction ratio, motor speed, drive pulley circumference, and door opening region can be inputted for application flexibility, particularly for manufacturers.
  • The motor encoder should be two-channel, incremental, with a 5V power supply, and a resolution of at least 100 Pulse/1 Revolution.
  • It offers precise comfort at high speeds and during travel ramps with its advanced control algorithm.
  • No need for limit switches.
  • In case of a power outage, automatic opening on the floor is performed using an external DC24V power source or two 12V batteries.
  • Closed retention of doors until floor level is ensured in battery-powered bring-to-floor systems.
  • Audible warning and reverse opening are triggered in case of door jamming, allowing for a slow passage to prevent harm to passengers and the door.
  • The SN30 Door Control Card is suitable for fire elevator doors.
  • It includes photocell and full-floor inputs.
  • Contact outputs are available to inform the control panel in Fully Open, Fully Closed, and Reverse Opening states.
  • Keypad and LCD screen are standard on the card for changing operating parameters.
  • Door hold-open and door jamming detection pressures can be adjusted according to requirements.
  • The opening/closing counter tracks the door's operation.
  • Turkish and English language options are available.
